| Product
list >> RSV Brass Safety Valve For Air Compressor |
|

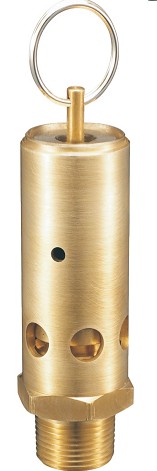

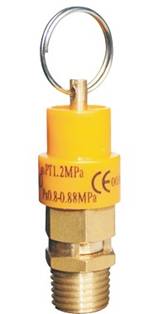

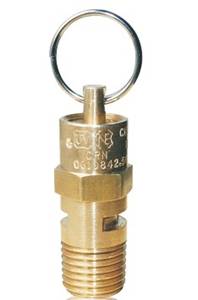

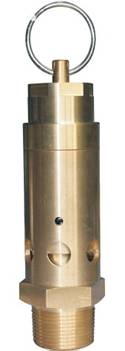

RSV Brass Safety Valve For Air Compressor
|
|
Specifications:
Model No:RSV-250
Material:Brass
Thread size:NPT1/4 or NPT1/8
Exhausting pressure:75~250PSI
Across flats of Hexagon:14mm
Height:42mm
Weight:34.5(g)
Model No:RSV-1.6-A
Material:Brass
Thread size:PT1/4”
Exhausting pressure:0.5~1.76MPa
Across flats of Hexagon:14mm
Height:45.5mm
Weight:33(g)
Model No:RSV-1.6-B
Material:Brass
Thread size:PT1/4”,PT3/8”
Exhausting pressure:0.5~1.76MPa
Across flats of Hexagon:19mm
Height:55.5mm
Weight:65.7(g)
Model No:RSV-1.6-C
Material:Brass
Thread size:PT3/4”
Exhausting pressure:0.5~1.76MPa
Across flats of Hexagon:30mm
Height:86mm
Weight:250(g)
Model No:RSV-1.6-D
Material:Brass
Thread size:PT1/2”
Exhausting pressure:0.5~1.76MPa
Across flats of Hexagon:24mm
Height:80mm
Weight:150(g)
Model No:RSV-1.6-E
Material:Brass
Thread size:PT1”
Exhausting pressure:0.5~1.76MPa
Across flats of Hexagon:42mm
Height:102mm
Weight:530(g)
Model No:RSV-1.6-S1
Material:Brass
Thread size:PT1/2”
Applicable:screw compressor
Exhausting pressure:0.5~1.76MPa
Across flats of Hexagon:24mm
Height:80mm
Weight:150(g)
Model No:RSV-1.6-S2
Material:Brass
Thread size:PT1”
Applicable:screw compressor
Exhausting pressure:0.5~1.76MPa
Across flats of Hexagon:44mm
Height:150mm
Weight:970(g)
Model No:RSV-1.6-S3
Material:Brass
Thread size:PT1-1/4”
Applicable:screw compressor
Exhausting pressure:0.5~1.76MPa
Across flats of Hexagon:50mm
Height:184mm
Weight:1640(g)
Model No:RSV-1.6-S4
Material:Brass
Thread size:PT2”
Applicable:screw compressor
Exhausting pressure:0.5~1.76MPa
Across flats of Hexagon:64mm
Height:210mm
Weight:3300(g)
|
|
|
